PaperTouch

PaperTouch

PaperTouch ceiling tiles are gypsum ceiling tiles designed to be installed with a T-bar grid, laminated with special printed-paper, which is easy to clean and provides a stylish design.

T-bar gypsum ceiling tiles that are coated with a special paper. It can be simply wiped clean. It is manufactured from gypsum board that meets TIS 219-2552 standard. The proper angle of the tile makes it simple to install Elephant T-Bar Paper Touch Ceiling Tiles, which are of consistent high quality, strong, and do not sag. Worthwhile because it can be used for a long time. There are 2 available types: standard and HeatBloc.

T-Bar Ceiling Tiles, Elephant Brand Paper Touch, can be installed in pairing with the Easy T-Bar G Ceiling System, G System, to create a strong and harmonious atmosphere.

Special Features

  • - Specially covered surface; easy to clean, no more stains.
  • - Fiber dust free; non-toxic to health and environmentally friendly.
  • - Heat resistant; products are made from high quality gypsum.
  • - Non-combustible; with its attached fire-proof gypsum paper.
  • - Stylish design; available in various styles, instant application without painting, allows for a large variety of designs to be mixed & matched.
  • - Easy to cut for corner or downlight installation without the need of any special cutting  tools.
  • It is recommended to install with Elephant T-bar grid for smooth and seamless ceiling tiles.
Physical Properties
  • Board type:  Standard,
                           Heat resistance (HeatBloc)
  • Edge profile: Square
  • Colors: Diamond White (White),
      Baby Blossom,
      I-Sawan,
      Dokkaew,
      Leelawadee,

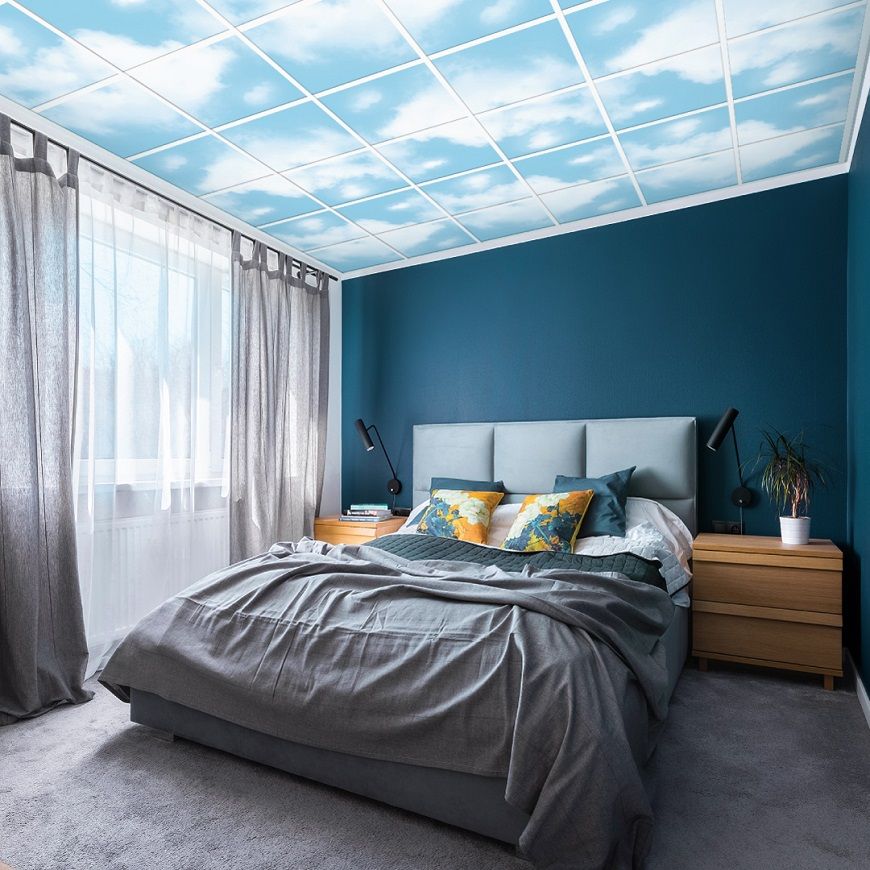

      Bright Sky 2
  • Weight: 4.9 kg/mm2 (Standard),
                5.0 kg/mm2 (HeatBloc)
  • Fire Prevention: Non-combustible
  • Light Reflectance: Max 80%
  • Quantity: 10 pcs/pack*
     (Note: ‘Bright Sky 2’ pattern contains 8 pcs/pack)
  • Installation: Install with T-bar grid spacing 605 x 605 mm.
Applications
  • Bedrooms and living rooms.
  • Restaurants, dormitories and offices.
  • Under roof ceilings.
  • Install HeatBloc ceiling panels with thermal insulation for keeping rooms cooler.
Size
  • 600 x 600 x 8 mm.
More Drawings
Thailand_EX

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
