E-zline H

E-zline H

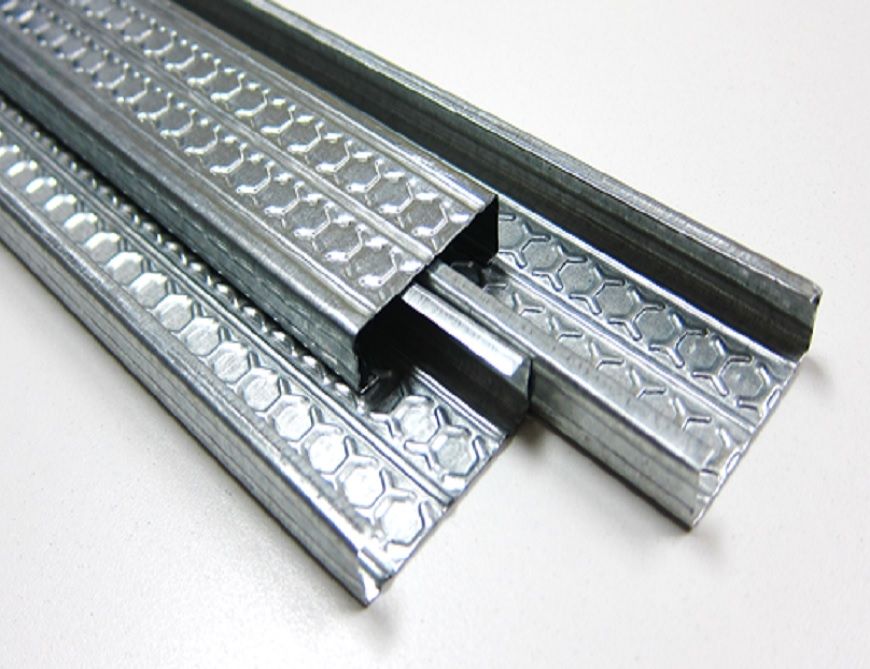

The Elephant E-Zline H is a standardized and reliable economy-priced frame that is made from standardized materials and manufacturing technology.

Special Features

  • A trustworthy and quality product produced by ceiling and gypsum wall professionals.
  • Made from high quality, rust-resistant galvanized steel.
  • Forming the profile with H pattern to strengthen the profile and increase the screw ability.
  • Consistent in quality and made from qualified steel.
Physical Properties
  • Standard : -
  • Material : Hot Dip Galvanized Steel , TIS 50-2548 (Thai Industrial Standards) or JIS G3302
  • Thickness : 0.35 mm.
  • Zinc coating : 80-100 gram / m2
  • Size : 11 x 36 mm.
  • Weight : 0.73 kg per stud
Applications
  • Suitable for small areas with smooth ceiling such as domestic rooms.
Size
  • E-zline H Stud : 11 x 36 x 4000 mm.

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
