PlusLine

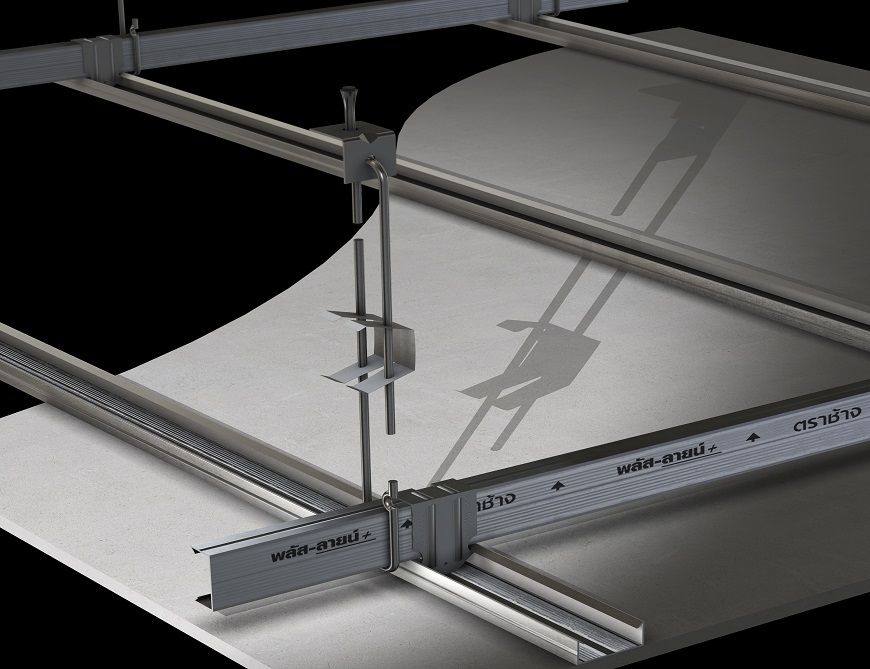

The Elephant PlusLine system - economy model system is designed to be strong, durable and safe. Every part of PlusLine system design is equably shaped for the quick and easy installation. Safety has been the main priority of this quality system.

Special Features

  • Enhances ceilings, making them smooth and durable.
  • Stronger than standard concealed ceiling systems with Safety Factor greater than 3 times.*

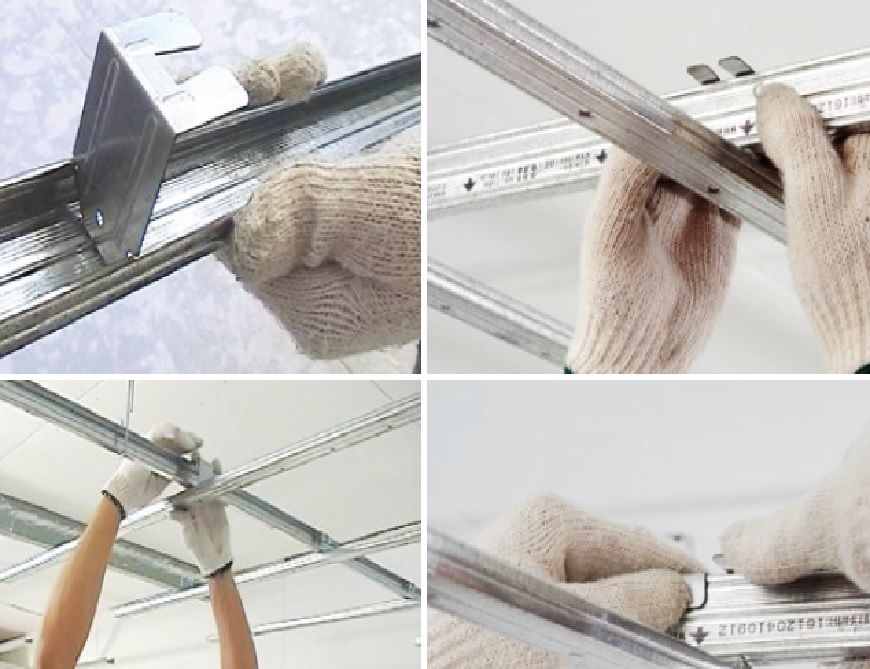

  • Quick and easy to install.
  • The frame includes a useful distance gauge that indicates the distance every 10 cm. which provides convenience and accuracy for every installation.
  • The main frame is suitably designed to be used for decorative and stepped ceilings
  • Suitable for small and middle sized areas.


*Calculated from the standard ceiling installation of Elephant gypsum board 9mm. thickness with main tee at 1.00m., cross tee at 0.40m. and the spacing of hanging set at 1.20m.

Physical Properties
  • Standard : -
  • Material : Hot Dip Galvanized Steel or Zinc Alloy Coated Steel , TIS 50-2548 (Thai Industrial Standards) or JIS G3302
  • Zinc coating : Equivalent to 120 g / m2
  • Size : 14 x 35 mm.
  • Weight : 0.83 kg per stud

Applications
  • Suitable for middle sized areas with smooth ceilings such as homes, apartments and condominiums.

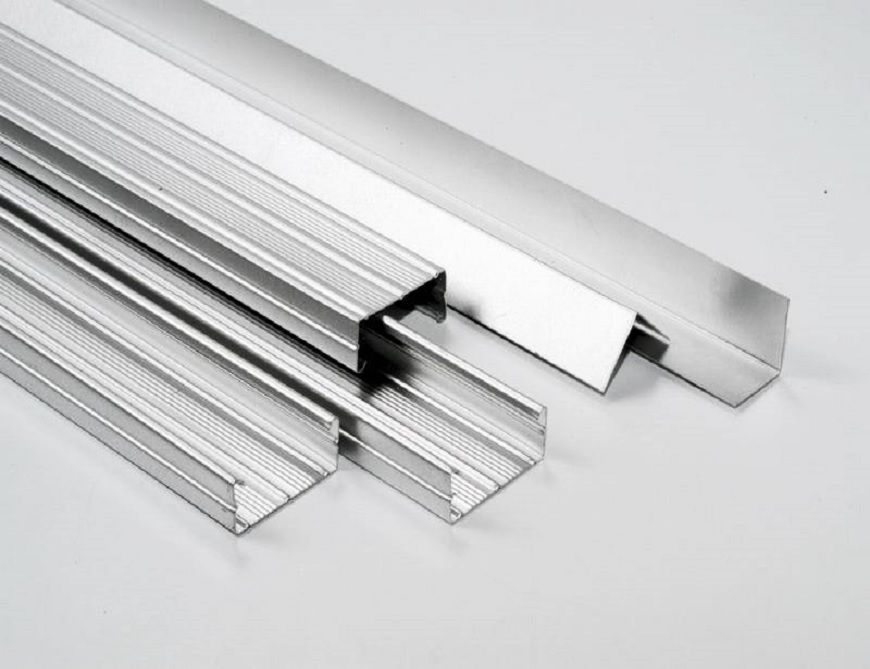

Size
  • PlusLine Stud: 14 x 35 x 4000 mm.
  • PlusWall Angle: 20 x 20 x 2400 mm.
Thailand_EX
ผลิตภัณฑ์ที่เกี่ยวข้อง

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
