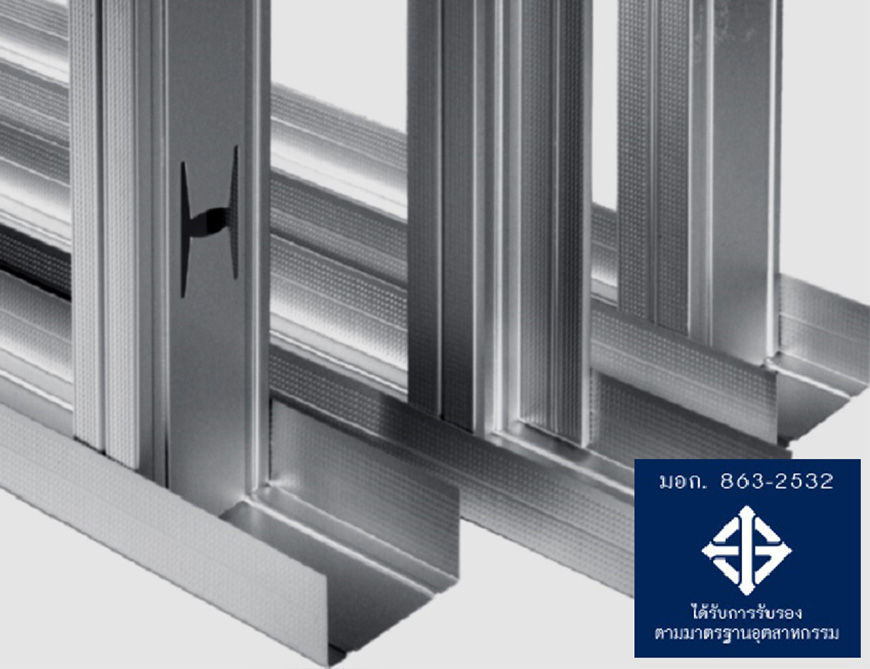

Elephant ProWall is system for interior walls that conform to TIS 863-2532 for the quick and easy installation. It is designed for multi uses such as, sound protecting and fire resistant systems that may require fixing and/or modifying in the future.

Special Features

  • Certified TIS (Thai Industrial Standards).
  • Strong and standardized frame.
  • Quick and easy to install.
  • Customized sizes available.
  • The frame includes a useful distance gauge that indicates the distance every 20 cm., which provides convenience and accuracy for installation.
  • Suitable for internal walls.
Technical Information
  • Standard : TIS 863-2532 (Thai Industrial Standards).
  • Material : Hot Dip Galvanized Steel, TIS 50-2548 (Thai Industrial Standards) or JIS G3302.
  • Thickness : 0.52 mm.
  • Zinc coating : 220 g. / m2
Usage Area
  • Suitable for gypsum wall or other wall types.
Size
  • ProWall C stud: 50 x 34(36) x 3000 mm., ProWall U stud 52 x 30 x 3000 mm.
  • ProWall C stud: 64 x 34(36) x 3000 mm., ProWall U stud 66 x 30 x 3000 mm.
  • ProWall C stud: 74 x 34(36) x 3000 mm., ProWall U stud 76 x 30 x 3000 mm.
  • ProWall C stud: 92 x 34(36) x 3000 mm., ProWall U stud 94 x 30 x 3000 mm.

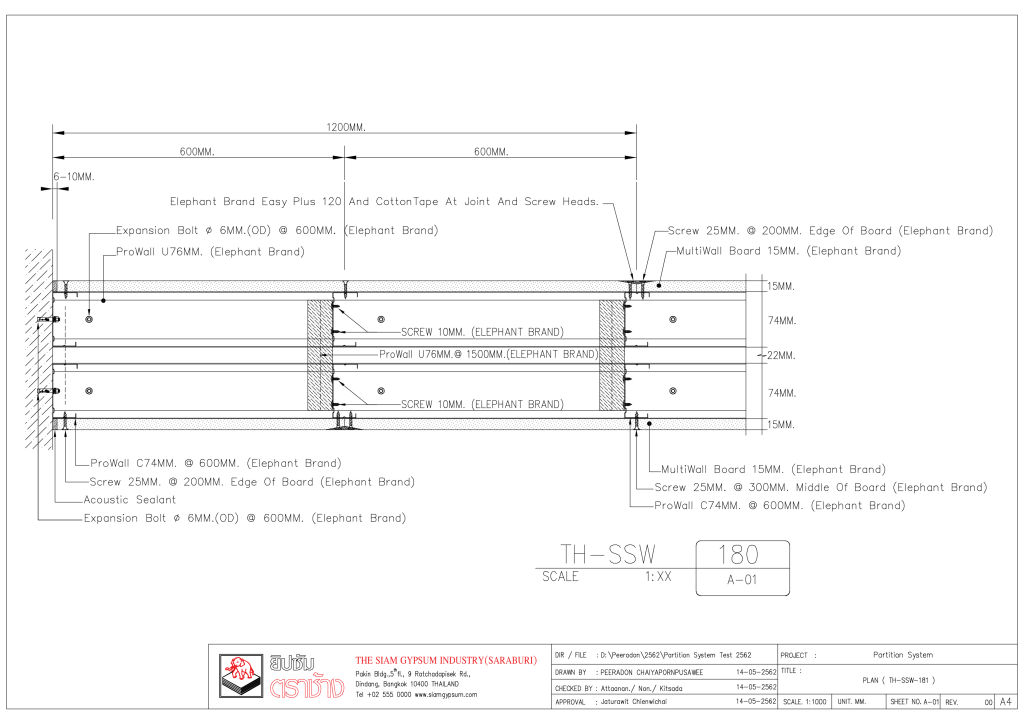

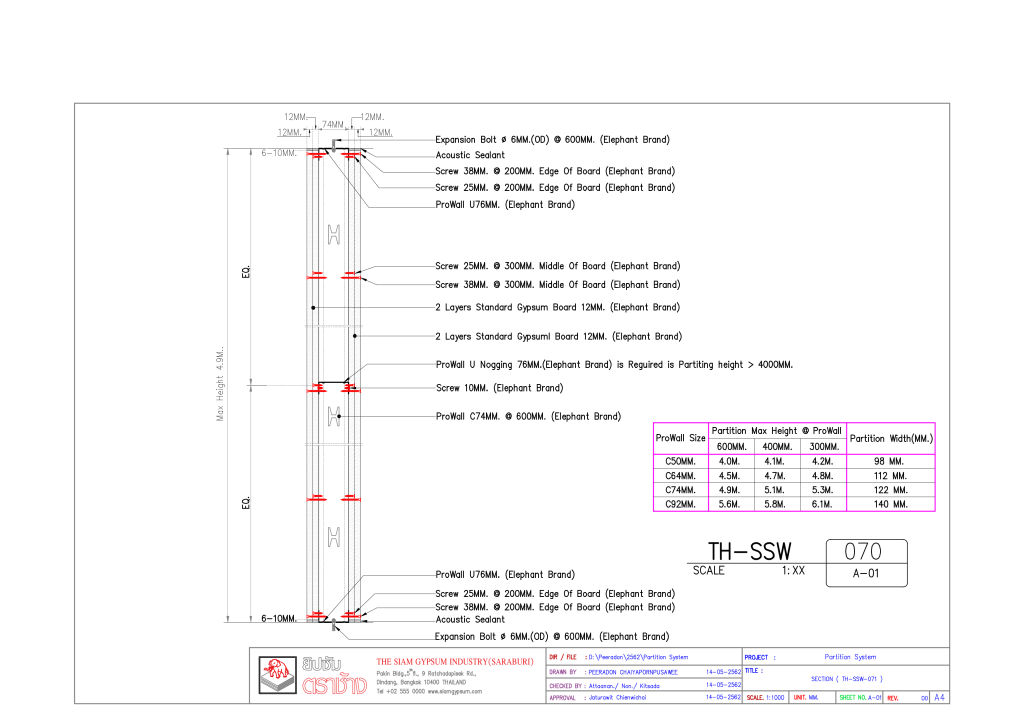

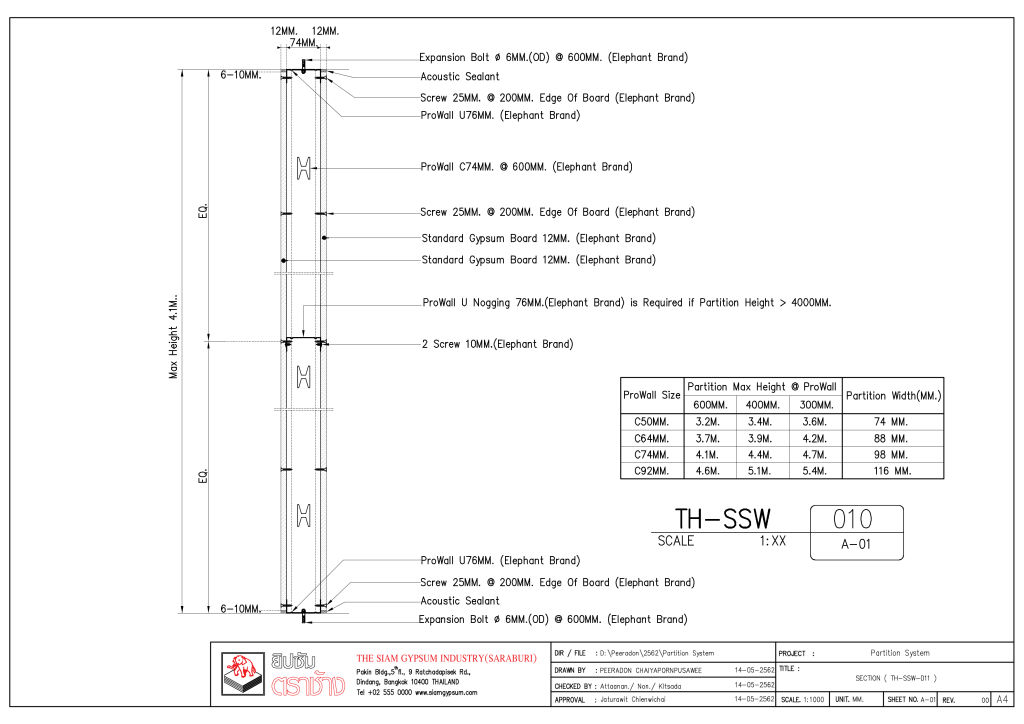

More Drawings
Thailand_EX

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
