Mars™ Healthcare ClimaPlus™

MarsTM Healthcare ClimaPlusTM

Create environmentally friendly healthcare spaces that brighten even the shortest of hospital stays.

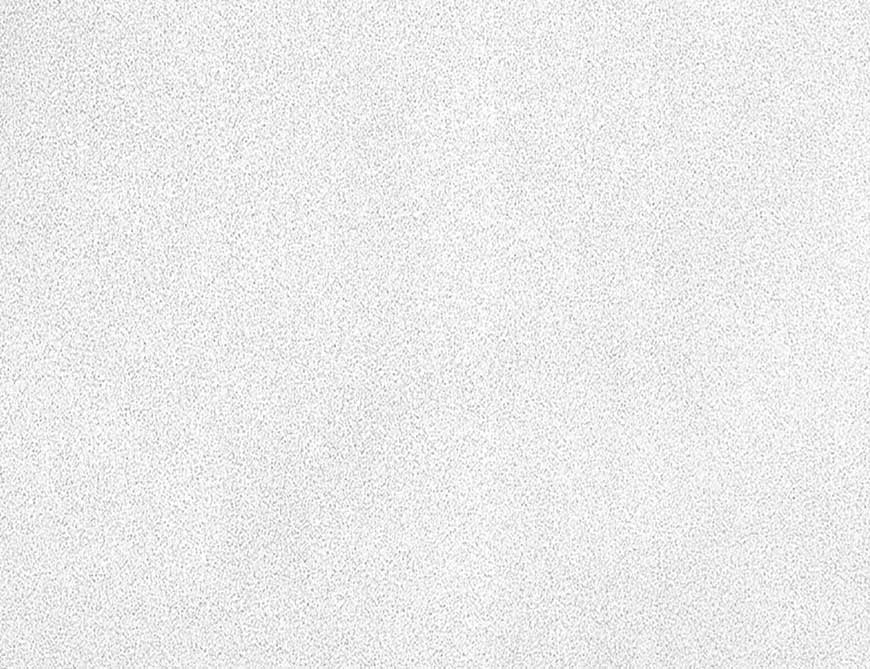

Mars™ Healthcare ClimaPlus™ acoustical panels have a water repellent membrane designed to be durable and deliver excellent noise reduction, sag resistance and high light reflectance.

A non-directional pattern offers a cleaner look, with fast and more efficient installation.

Meets low-emitting emission test criteria prescribed by the Singapore Green Building Council (SGBC) following ASTM D5116-06 testing methods.

Special Features

  • ClimaPlus 30-year lifetime system warranty to withstand temperature and humidity conditions up to 49°C/99% relative humidity without visible sagging when used with a USG T-bar grid suspension system.
  • Excellent sound absorption and protection.
  • High light reflectance, reduces light fixtures and energy use.
  • Excellent light reflective finish reduces light fixtures and energy use with up to 80%.
  • Non-combustible.
  • Lightweight, construction cost saving.
  • Available in optimized recycled content formulations to help maximize LEED recycled content contribution.
  • Contains a broad-spectrum antimicrobial additive on the face and back of the panel that provides resistance against the growth of mold and mildew.
  • High NRC (.70) for excellent sound control.
  • High light reflective finish (LR .89) reducing light fixtures and energy use.
  • Washable and soil-resistant finish.
  • Impact and scratch resistant.
  • Meets USDA/FSIS guidelines for use in food processing areas.
Physical Properties
  • Panel size: 593 x 593mm., 593 x 1194mm.
  • Thickness: 19mm.
  • Grid Spacing: 600 x 600mm., 600 x 1200mm.
  • Edge Profile(s): Square edge, Shadowline Tapered, Fineline Bevel
  • Noise Reduction Coefficient (NRC): 0.70
  • Ceiling Attenuation Class(CAC): 35 dB
  • Light Reflection (LR): 0.90
  • Thermal Resistance: R Factor 2.2 (BTU units)
  • Fire Resistance: Class A : Flame Spread 25, Smoke developed : 50
  • Weight : 5.70 - 6.10 kg / M2
  • Sustainability: up to 77% recycled material.

Applications
  • Patient rooms
  • Treatment rooms
  • Nurses' stations
  • Laboratories
  • Kitchen/food-prep areas

Related Products
T-bar (M)

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
