Pin Perf™ ClimaPlus™ Concealed / Semi-Concealed

Pin PerfTM ClimaPlusTM  (Concealed / Semi-Concealed)

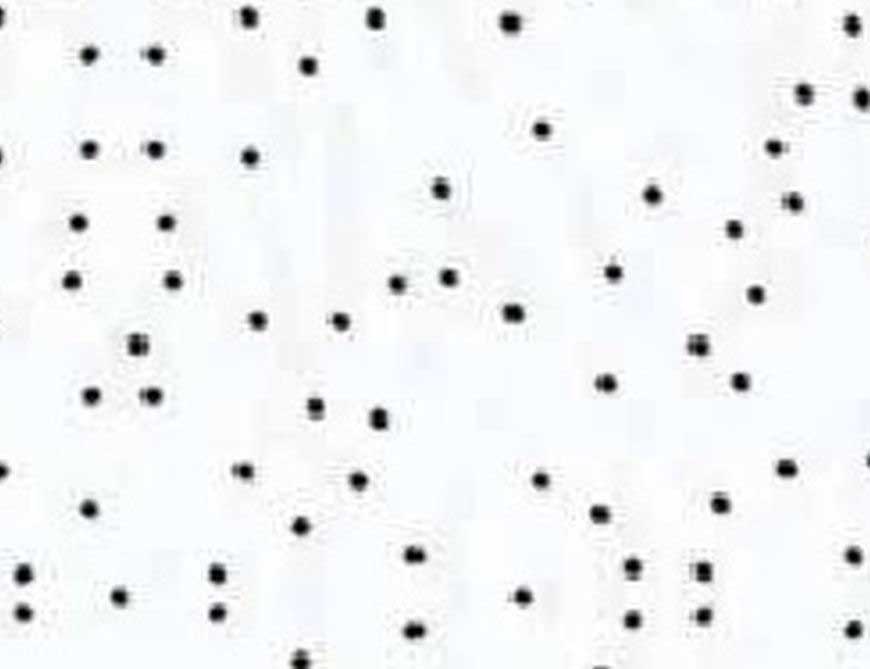

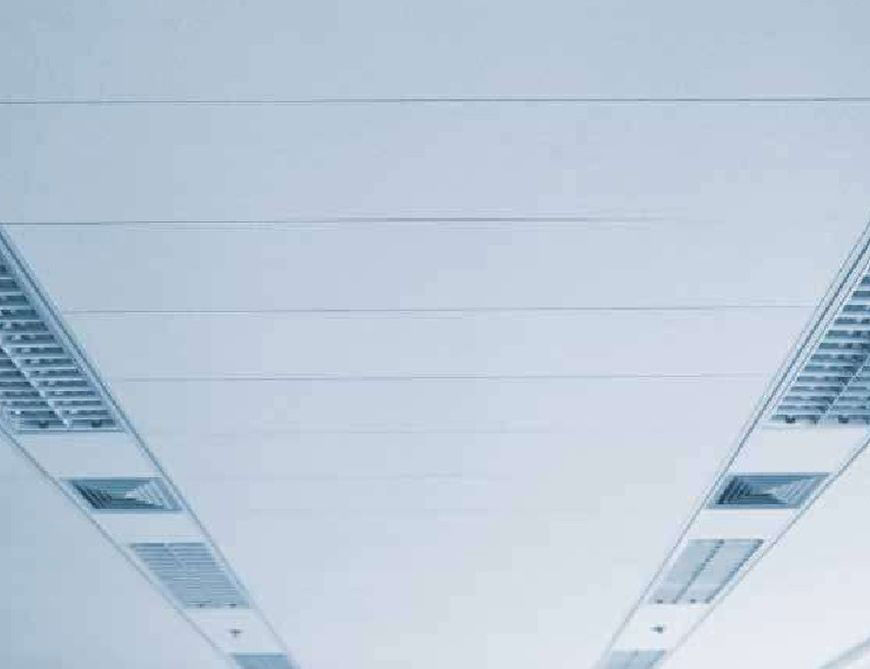

Pin PerfTM ClimaPlusTM (Concealed / Semi-Concealed) creates a uniformed look with high reflectivity.

A non-directional pattern offers a cleaner look, with fast and more efficient installation.

Meets low-emitting emission test criteria prescribed by the Singapore Green Building Council (SGBC) following ASTM D5116-06 testing methods.

Special Features

  • ClimaPlus 30-year lifetime system warranty to withstand temperature and humidity conditions up to 49°C/99% relative humidity without visible sagging when used with a USG T-bar grid suspension system.
  • Excellent sound absorption and protection.
  • Reduce thermal transfer and energy loss.
  • Excellent light reflective finish reduces light fixtures and energy use with up to 80%.
  • Non-combustible.
  • Lightweight, construction cost saving.
  • Available in optimized recycled content formulations to help maximize LEED recycled content contribution.
  • Fine-textured acoustic panel creates a clean and upscale appearance.
  • High reflectivity, decreases lighting requirements, saves energy, alleviates eye fatigue.
  • Contains a broad-spectrum antimicrobial additive on the face and back of the panel that provides resistance against the growth of mold and mildew.
  • Soft and delicate visual effect.
Physical Properties
  • Panel size: 300 x 1200mm.,
                    300 x 1800mm., 300 x 2400mm.,
           400 x 1800mm., 400 x 2400mm.
  • Thickness: 15mm., 19mm.
  • Edge Profile(s): Square Edge, Besk, S-Besk
  • Noise Reduction Coefficient (NRC):  0.55 - 0.60
  • Ceiling Attenuation Class(CAC): 33dB
  • Light Reflection (LR): 0.85
  • Thermal Resistance: R-1.7
  • Fire Resistance: Class A : Flame Spread 25, Smoke developed : 50
  • Weight: 4.60 - 5.70 kg / M2
  • Sustainability: up to 48%, 67% recycled material.
  • Offices
  • Retail Stores
  • Schools
  • Showrooms
  • Hospitals
  • Airports
  • Corridors
Related Products

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
