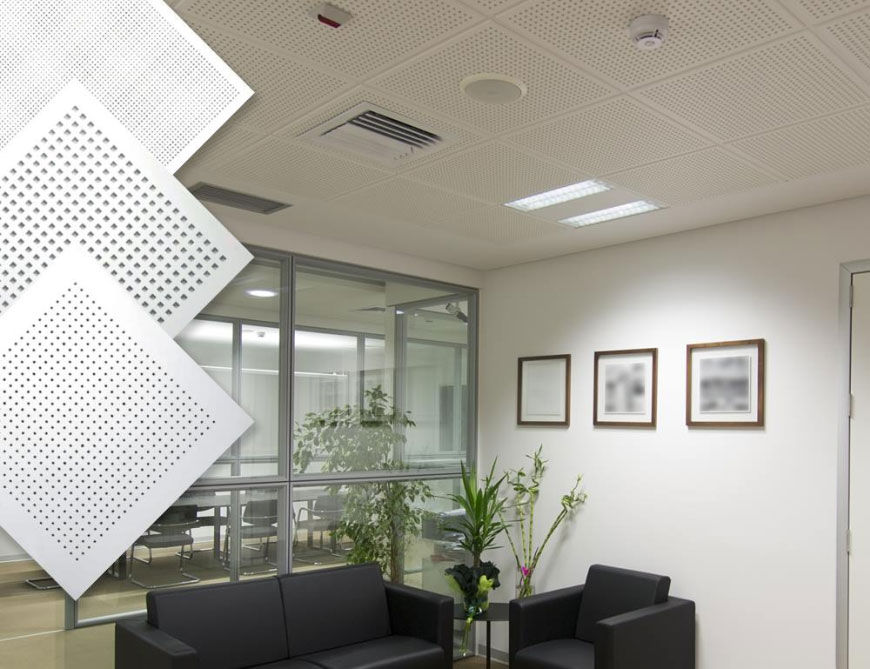

EchoBloc Tile

EchoBloc ceiling tiles are gypsum ceiling tiles designed to be installed with T-bar studs. Comes with a pre-painted white coating and geometric perforated design with GlassMat at its back. Provides a modern and attractive look.

Reduces sound reflection in the room with an NRC of between 0.40-0.75 decibels*

Designed to be installed with USG DX ll 38 mm T-bar studs to gives you a smooth, seamless and high quality appearance.

Special Features

  • Reduce sound reflection in the room with an NRC of between 0.40-0.75 decibels*
  • Comes with a pre-painted white coating from the factory. Seamless and ready to be installed.
  • Provides a modern look with 3 available geometric patterns.
  • Corner lap siding makes it easy to install, relocate, maintain and use.
  • Incombustible; with its attached fire-proof gypsum paper.
  • Easy to install and cut for corner or downlight installation without the need of any special cutting tools.
Physical Properties
  • Board Type: Standard
  • Edge style: Tapered edge
  • Pattern: Micro Punch (small square hole , size of hole 3x3 mm.),
                      Square 12 (large square hole ,size of hole 12x12 mm.),
                                     Circle 6 (hole circle ,size of hole diameter 6 mm.)
  • Weight: 10.7 kg./Sq.m.
  • Fire Prevention: Incombustible
  • Sound Absorption: NRC 0.40-0.75 decibels*: ASTM C423
    * Install with 2"48K Glasswool to get the NRC 0.75.
  • Contains: 4 boards/box

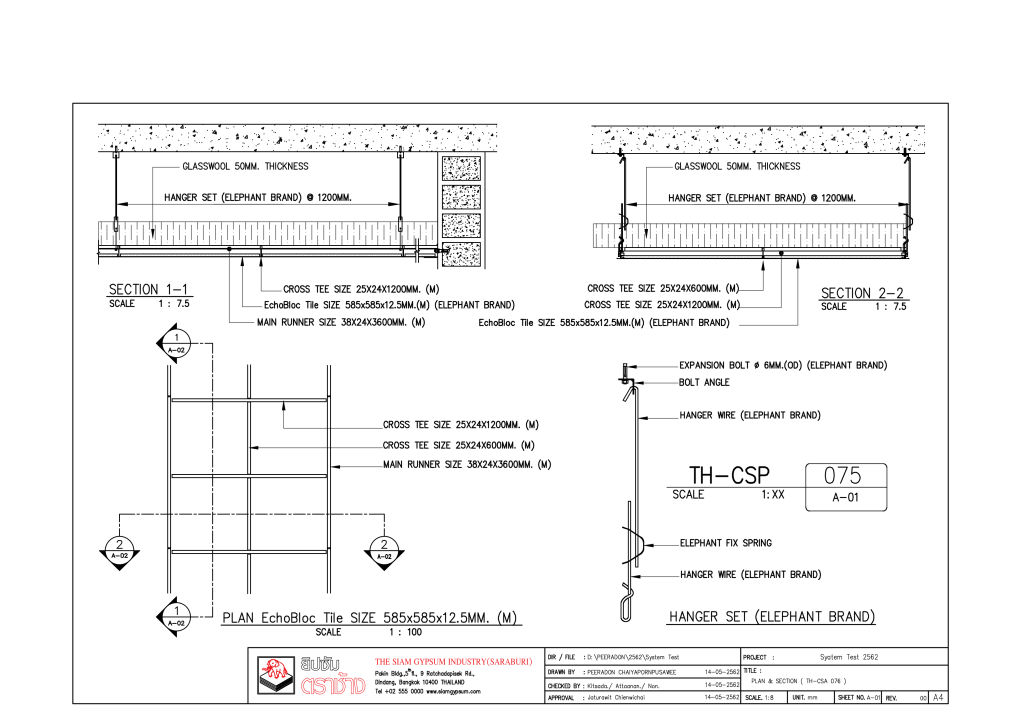

  • Installation: Metric System Installation: Install in the middle of each T-bar stud. 600 x 600 mm. Install with the USG T-bar model DX II Ridge 38 mm.

Applications
  • Ceilings within the home, home theaters, Music studios and theaters.
  • Ceilings within school classrooms, libraries and restaurants.
  • Ceilings within the office, meeting rooms and executive lounges.

Size
  • 585 x 585 x 12.5 mm.
Thailand_EX

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
