EchoBloc gypsum board comes with a noise-absorbing feature. Let’s you create your glazed flat ceiling with a modern design. The board provides an efficient sound absorption and reducing echo.

EchoBloc is a perforated board padded with a Glass Mat sound absorbing layer on its back side. Elephant EchoBloc can be applied as a ceiling or wall to reduce echoing and provides an improved atmosphere in the room.

Special Features

  • Noise Reduction Coefficient (NRC) up to 0.65 - 0.8.
  • Provides an attractive look with perforated design.
  • Can enhance or inhibit human interactions.
  • As easy to install as regular gypsum board.
Physical Properties
  • Dimensions : 1200 x 2400mm.
  • Thickness : 12mm.
  • Edge : Tapered
  • Paper Colour : Ivory front
    : Brown back
  • Average Weight : 10.0 kg / sqm.
Sustainability
  • Environmentally friendly and recyclable.
Applications
  • Music chamber such as home theaters, rehearsal rooms.
  • Areas that contain levels of high human interaction - hotels, shopping malls, office buildings, conference rooms, restaurants and meeting rooms.
  • Large contained areas that would normally cause echoing - libraries, hospitals, airports, convention centers.

Size
  • 1200 x 2400 x 12 mm.

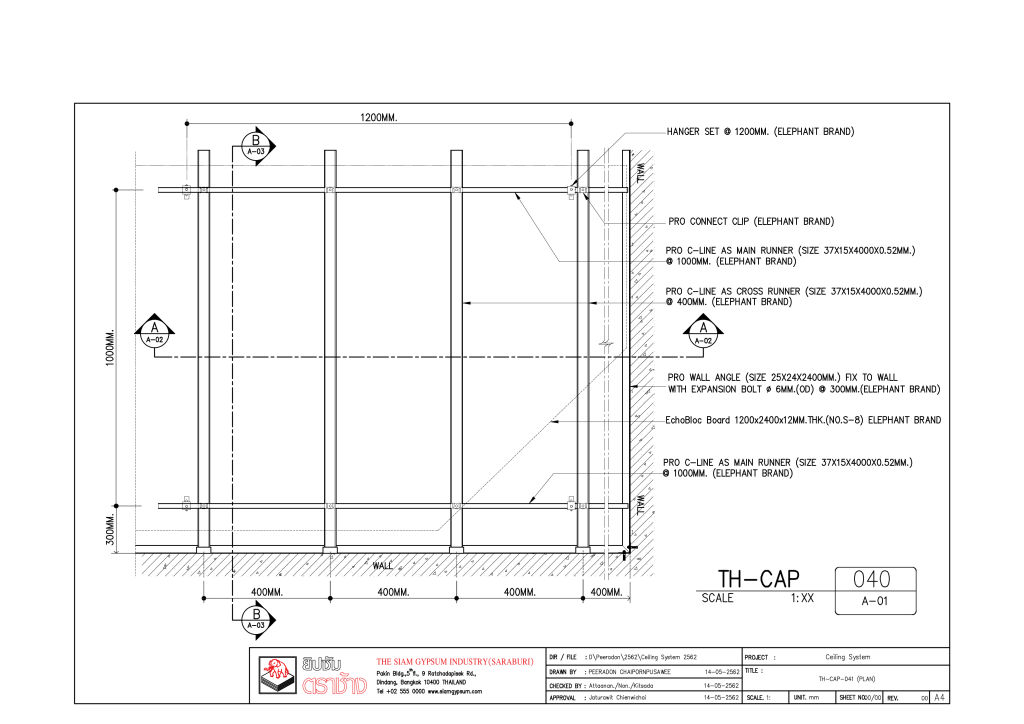

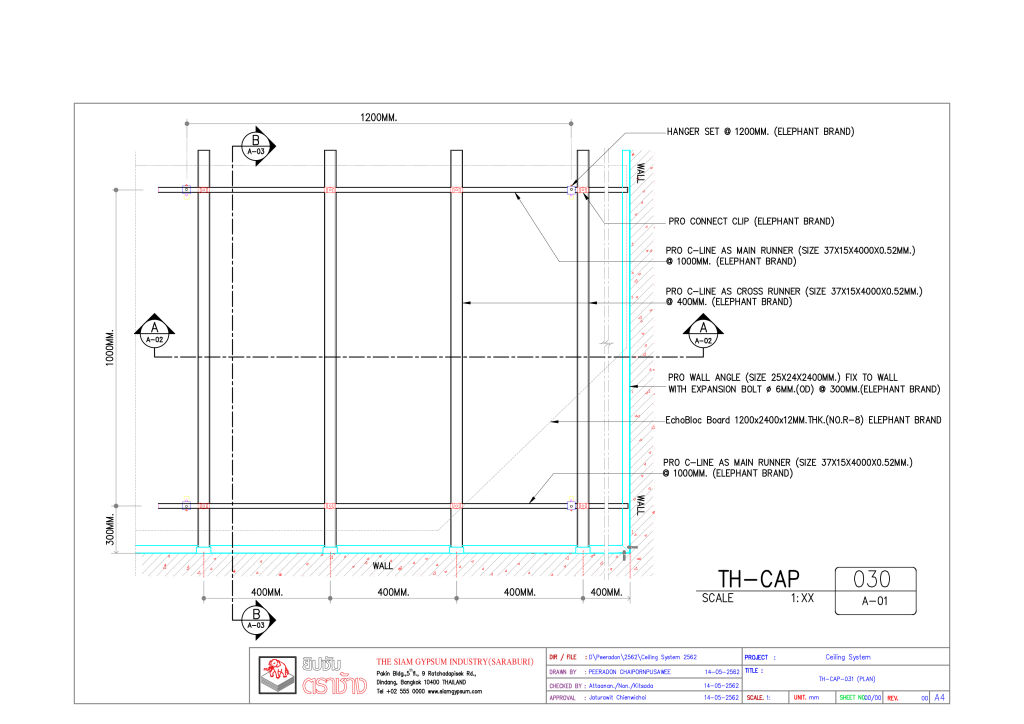

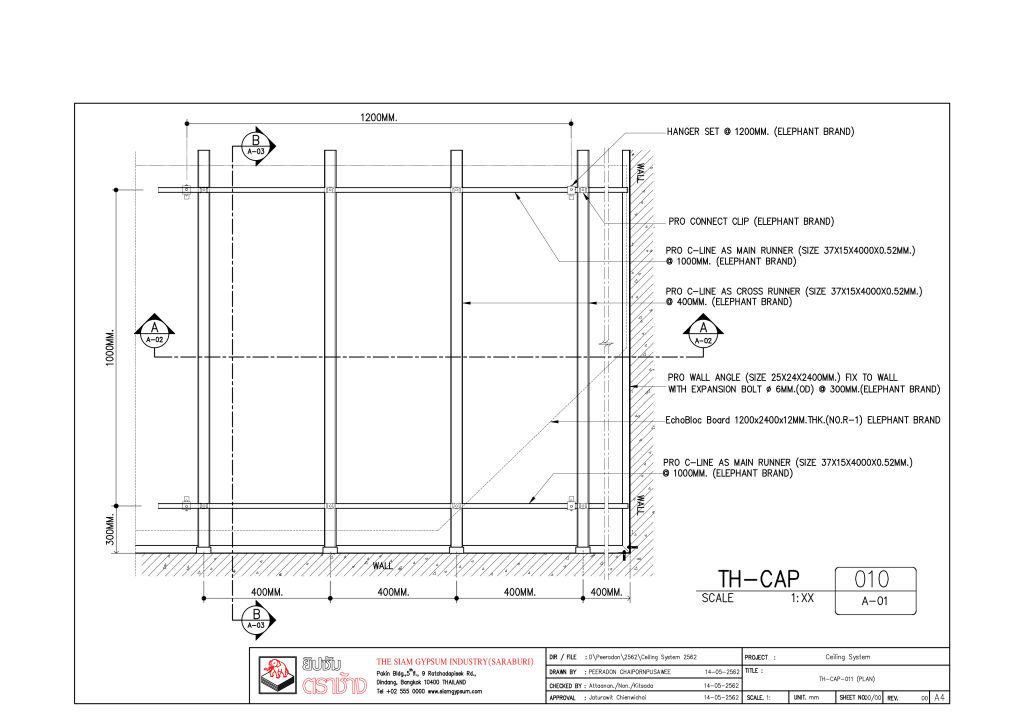

More Drawings

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
